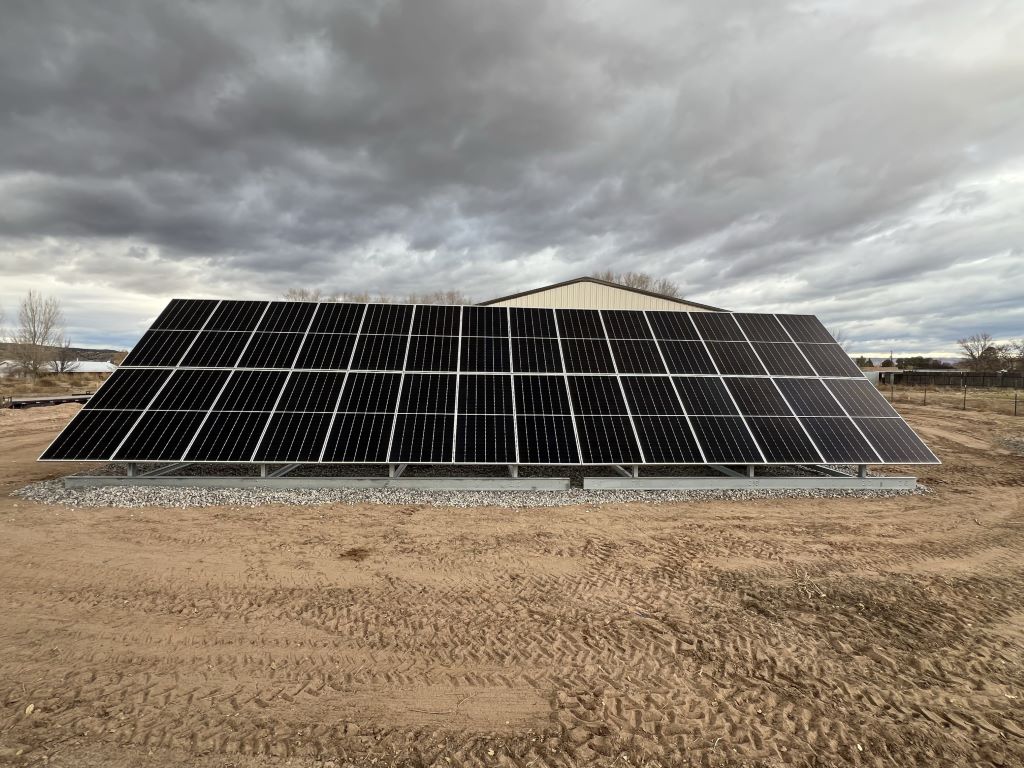

| Description: | 28- Panel 19.54 kW Premium Off-Grid Solar System
• (28) 698 Watt (BSTC), Bifacial Monocrystalline Solar Panels, Industrial Grade.
• (2) Solark Inverter, UL 1741 Certified, Nema 3R, Includes DC disconnect. Capable of online monitoring if connected to the internet.
• (10) Briggs & Stratton Batteries, Lithium Iron Phosphate, 3.8 kWh, 48 Volt DC.
• (2) Battery Control Cabinets, Nema 4x, Insulated & Temperature Controlled.
• Built-In AC Disconnect Switch in Solark Inverter (Customer connection point).
• Inverter AC Output, Nominal: 18.0 kW, 208/240 Volt, Single Phase, 60 Hz.
• Battery Bank Capacity: 38.0 kWh.
• Inverter capable of handling generator and/or grid input for additional power source.
• All components listed above to be mounted on (2) galvanized steel frameworks and are prewired together according to National Electrical Code (NEC). Unit assembled, programmed & tested prior to shipping from factory.
• Approximate Unit Dimensions: 52'6"L x 13'3"W x 11'10"H (folds to 8'6"W x 9'7" H x 8'6" W for transporting).
*Note: Shipping, anchoring, installation, permitting, and sales tax (if applicable) are not included and are quoted separately. This model can be used in Off-Grid applications, or Grid-Tie Battery Backup applications.
These systems are fully customizable, and we can support up to 10 megawatts (MW) commercial solar projects. |
