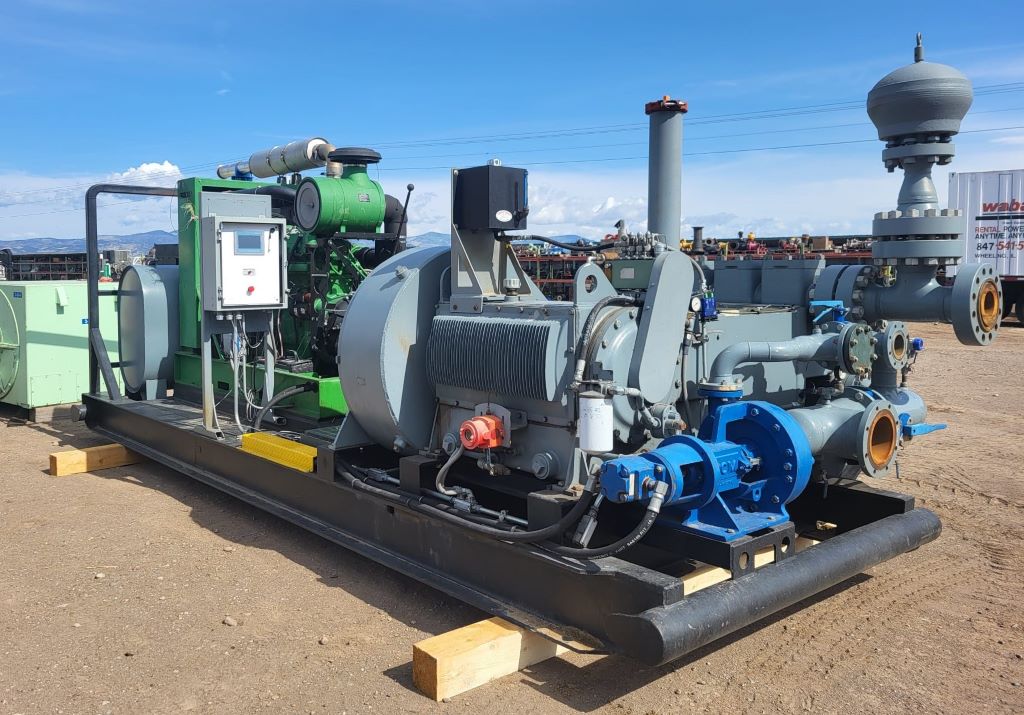

Used Oilwell A-348-5 Triplex Pump Package For Sale
30 Pictures - Click to View
Stock No: 61043
| Brand/Model: | Oilwell A-348-5 |
| Description: | Used Oilwell A-348-5 pump with a Rebuilt John Deere Engine 6125HF001, following features below: • 8" stroke • 500 HP • Aluminum Bronze fluid end material • 5" Steel Plungers • 4.604:1 Standard 6.86:1 Optional Gear Ratio • AR Valves • 8" ANSI 300# suction • 6" ANSI 1500# discharge • Weight: 30,000 lbs. approx. whole skid • Dims: 109"(L)x 41"(W)x 55"(H)- pump only • Dims: 249"(L)x 110"(W)x 98"(H)- whole unit Used Rebuilt John Deere 6125HF001 Engine with following features: • 469 HP • 2000 RPM • 6 Cylinder • 118.4 mm (4.66 in) Bore • 136.0 mm (5.35 in) Stroke • 9 L Displacement • Turbocharged and air-to-air aftercooled aspiration • 14" Flywheel size • Tier 3 Rating • Weight: 30,000 lbs. approx. whole skid • Dims: 116"(L)x 51"(W)x 69"(H)- engine only • Dims: 249"(L)x 110"(W)x 98"(H)- whole unit • Manufacture date: 10-06-1998 |
| Applications: | Well Service Pump, Water Transfer Pump, Mud Pump, Kill Truck Pump, Lift Station Pump, Condensate Pump, Cooling Tower Pump, Geothermal Pump |
| HP: | 500 |
| RPM: | 260 |
| PSI: | 1455 |
| GPM: | 530 |
| Ratio: | 6.8600 |
| BPD: | 18171 |
| BPD: | 18171 |
| BPH: | 757.1 |
| BPM: | 12.62 |
| L/SEC: | 33.44 |
| L/MIN: | 2006 |
| M3/SEC: | 0.0334 |
| M3/HR: | 120.38 |
| M3/DAY: | 2889 |
